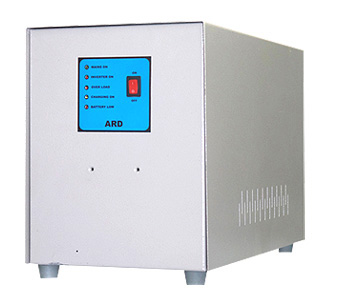

These ARDs are designed to match latest types of VFDs which can operate from single phase power supply. With two small SMF batteries it can perform rescue operation of a small elevator with 5/7.5 H.P. motor.
- Auto shutdown of UPS after rescue operation, so the batteries are not over discharged after prolonged power failure.
- Programmed delay to start UPS after power failure.
- Output in mains mode through NC contact of relay, so in any case if mains is present, power is available at output.
- Low ripple battery charger for smooth charging of batteries and longer life.
- One Input & one Output potential free contact for communication.
- Power failure source selection option
- Single PCB and only one power transformer
- Less than 1 mA current consumption in idle mode
- DZ input for shutdown
| Model | Single Phase Out ARD | ||
| Parameter | 180 V – 270 V | 2 KVA | 2.5 KVA |
| Input Voltage | 180 V – 270 V | ||
| Output Voltage | 240 V, +/- 10% | ||
| Waveform | Quasi Sine wave / Pure Sine wave | ||
| Output Power | 1050 Watt | 1400 Watt | 1800 Watt |
| Battery Voltage | 24 V | 36 V | 48 V |
| Charging Current | 2 Amp +/- 0.2 Amp | ||
| Charging Voltage | 27 V | 40.5 V | 54 V |
| Power Failure signal | Internal Or External Selectable | ||
| Inverter On After Power Failure | 3-30 Sec – Adjustable on Field | ||
| DZ Input | From Potential Free Contact | ||
| Inverter Off After DZ Input | 5 Seconds( can be modified in software) | ||
| Power Resume During ARD Operation | Will wait till ARD overflow time -out (180 Sec) Or till DZ Input | ||
| Extra Output | One NO/NC potential Free Contact | ||
| Recommended Battery Size | 18 AH Or 26 AH 12 V SMF | ||
| Mounting | Open Or with cabinet | ||
